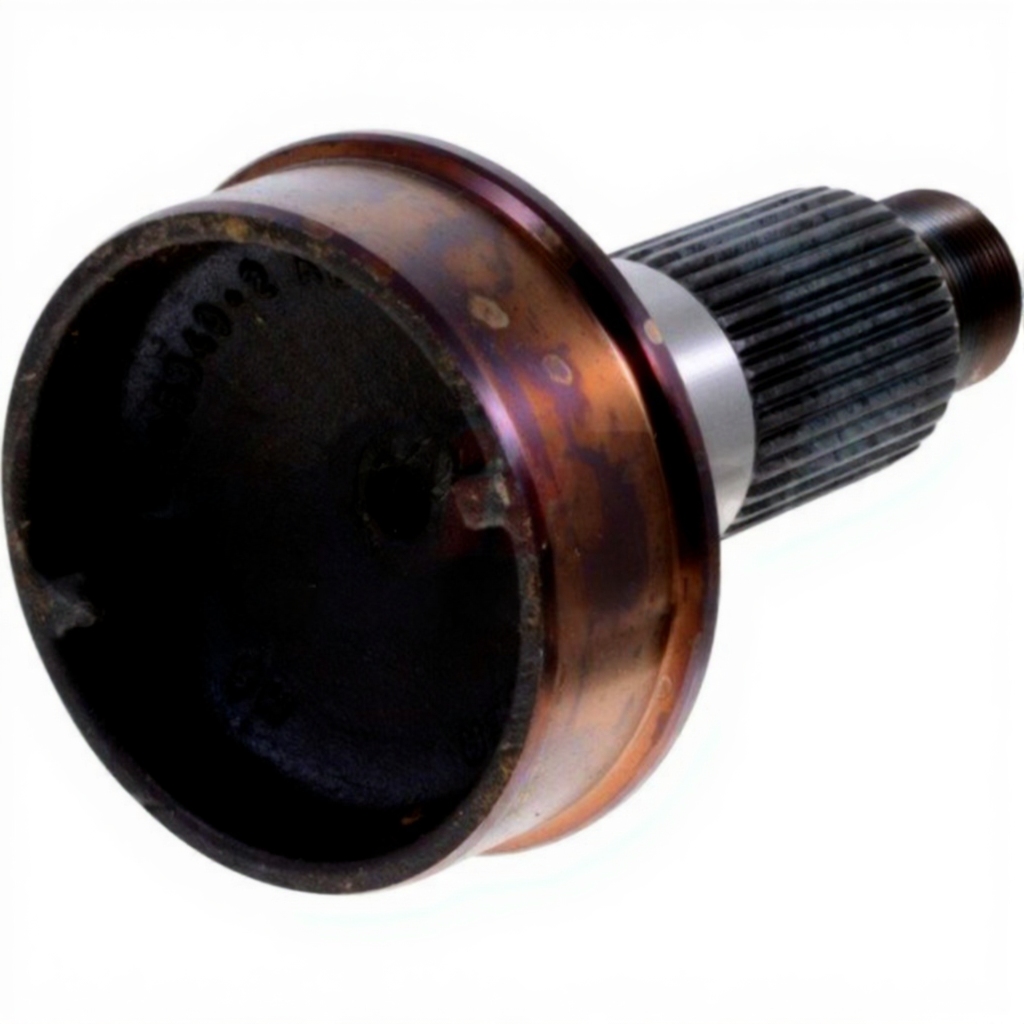

Drive Shaft Midship Stub ShaftBrand AKGFor Use With End Yoke Or ompanion FlangeSeries SPL90Invoice MIDSHIP TUBE SHAFTMaterial SteelSpline O.D. 1.750Number Of Splines 34 IInvolute YFits Tube Diameter 4.000Fits Tube Wall .259Spline End To Brg Shoulder Y 3.125Spline End To Weld K In. 4.219Spline Length L In. 2.000Thread Size 1.250- 18Shoulder Diameter B In. 2.188Shoulder Length G In. .812Bearing Diameter In. 1.771VMRS 024002060Butt Diameter 3.743Style 2Bearing Diameter Max 1.7717Bearing Diameter Min 1.7712Package Type EAHPackage Qty 1Weight 5.64 LB

Drive Shaft Midship Stub ShaftBrand AKGFor Use With End Yoke Or ompanion FlangeSeries SPL90Invoice MIDSHIP TUBE SHAFTMaterial SteelSpline O.D. 1.750Number Of Splines 34 IInvolute YFits Tube Diameter 4.000Fits Tube Wall .259Spline End To Brg Shoulder Y 3.125Spline End To Weld K In. 4.219Spline Length L In. 2.000Thread Size 1.250- 18Shoulder Diameter B In. 2.188Shoulder Length G In. .812Bearing Diameter In. 1.771VMRS 024002060Butt Diameter 3.743Style 2Bearing Diameter Max 1.7717Bearing Diameter Min 1.7712Package Type EAHPackage Qty 1Weight 5.64 LB

79.00$

Aftermarket replacement component for professional repair and maintenance use.

SKU: 90-53-11 Category:

This aftermarket replacement component is designed for durability, precision, and consistent performance. • Aftermarket replacement part
• Part-number-based identification
• Suitable for professional maintenance use Compatibility and cross-reference numbers are provided for identification purposes only. Mannat Gears & Differential Inc. is an independent aftermarket supplier.

Weight 4.28 lbs
